Diaphragm Accumulator
High-Performance Diaphragm Accumulators for Hydraulic Systems – Milehertz by Hidroefe Hydraulic
Hidroefe Hydraulic proudly imports and distributes Milehertz-branded high-quality diaphragm accumulators, providing reliable solutions for industrial machinery and heavy-duty hydraulic systems worldwide. Our diaphragm accumulators play a vital role in pressure balancing, energy storage, and shock absorption in hydraulic circuits.
Designed for demanding operating conditions, Milehertz diaphragm accumulators deliver exceptional durability and performance, ensuring increased equipment efficiency and extended service life. Whether you operate in harsh environments or high-pressure applications, Milehertz is your trusted partner for advanced hydraulic accumulator technology.
🌐 Learn more at www.nbchaori.com.tr
Model Description

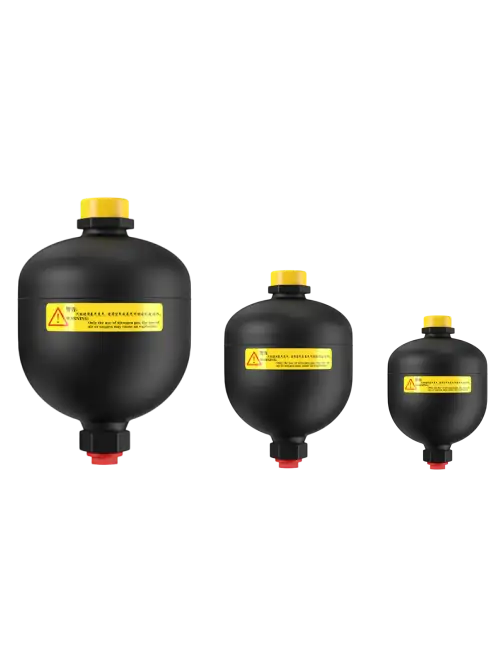

Diaphragm Type Accumulator
250Bar, 330Bar.
0.075L, 0.16L, 0.25L, 0.32L, 0.5L, 0.75L, 1.0L, 1.4L, 2.0L, 2.5L, 2.8L, 3.5L
| Common | G1/4 Female/Male | G1/2 Female/Male | Composite Pad |
|---|---|---|---|
| G3/8 Female/Male | G3/4 Female | ||
| 9/16-18UNF Female/Male | 3/4-16UNF Female/Male | ||
| 7/8-14UNF Female/Male | 1 1/16-12UN Female | ||
| M14X1.5 Female/Male | M18X1.5 Female/Male | ||
| M16X1.5 Female/Male | M22X1.5 Female/Male | ||
| Combination | G1/2 Female + M33X1.5 Male | G3/4 Female + M45X1.5 Male | |
| Optional | Metric (M), British (G), Unified (UNF), American Pipe (NPT), Dual Internal and External Threads (G+M, M+M, UNF+M) | O-Ring/ED-Ring | |
F: Female Thread
M: Male Thread
FM: Female and Male Thread
C: Carbon Steel
S: Stainless Steel
| Code | Material | Description |
|---|---|---|
| N | NBR | General-purpose nitrile rubber compatible with most hydraulic oils. |
| H | HNBR | Hydrogenated NBR for low temperature and high wear resistance. |
| I | IIR | Butyl rubber for special fluids and high gas tightness. |
| E | EPDM | Ethylene propylene rubber for water and glycol-based fluids. |
| F | FPM | Fluoro rubber for high temperature and aggressive environments. |
W: Welded Design, rechargeable MILEHERTZ Gas Valve Version 1 (M 28x1.5)
W2: Welded Design, rechargeable MILEHERTZ Gas Valve Version 2 (M 14x1.5)
Technical Specifications
External Dimensions of Diaphragm Accumulator
| Model | MDA | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Working Pressure (BAR) | 250, 330 | |||||||||||
| Max Working/Pre-Charge Pressure Ratio | 8:1 | 4:1 | ||||||||||
| Volume (L) | 0.075 | 0.16 | 0.25 | 0.32 | 0.5 | 0.75 | 1.0 | 1.4 | 2.0 | 2.5 | 2.8 | 3.5 |
| Weight (KG) | 1.0 | 1.2 | 1.8 | 2.1 | 2.9 | 4.2 | 5.4 | 8.0 | 10.0 | 10.6 | 11.2 | 13.8 |
| Diameter D (mm) | 66 | 75 | 89 | 95 | 111 | 125 | 142 | 157 | 173 | 173 | 173 | 173 |
| Height A (mm) | 72 | 80 | 93 | 99 | 113.8 | 128.5 | 140 | 169 | 193 | 207 | 228 | 275.2 |
| Threaded Connection / British Standard | G1/2 | G3/4 | ||||||||||
| Max Flow Rate (L/min) | 38 | 95 | 150 | |||||||||
| SW (mm) | 32 | 41 | ||||||||||

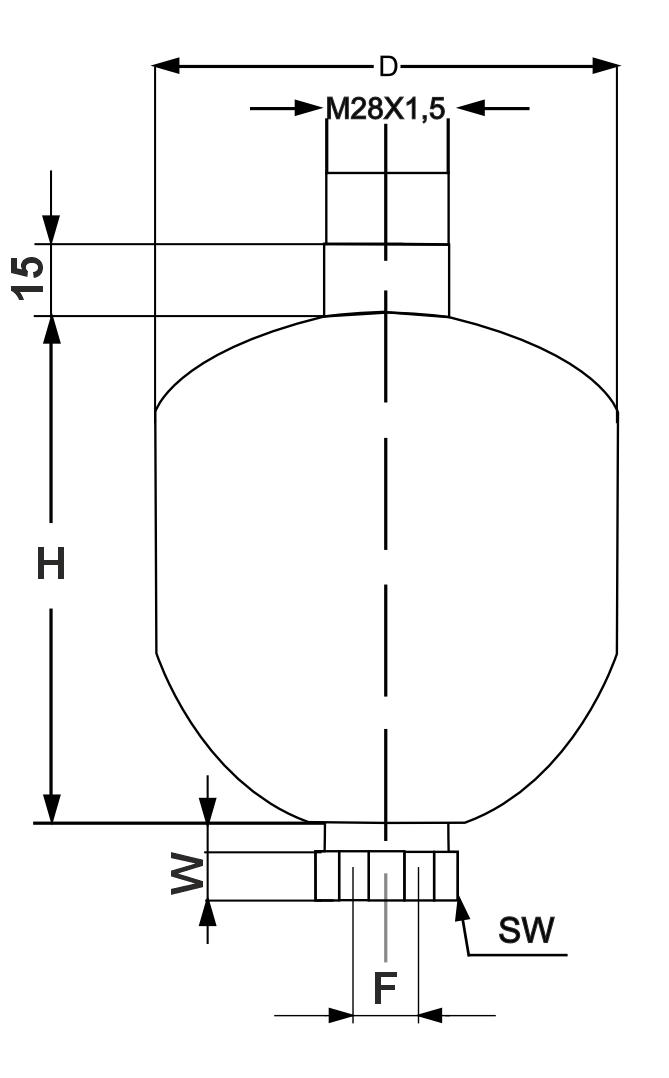

External Dimensions of Stainless Steel Diaphragm Accumulator
| Model | MDA | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Max Working Pressure (BAR) | 210 | ||||||||
| Max Working/Pre-Charge Pressure Ratio | 8:1 | 4:1 | |||||||
| Volume (L) | 0.16 | 0.32 | 0.5 | 0.75 | 1.0 | 1.4 | 2.0 | 2.5 | 2.8 |
| Weight (KG) | 1.2 | 2.1 | 2.9 | 4.2 | 5.4 | 8.0 | 10.0 | 10.6 | 11.2 |
| Diameter D (mm) | 75 | 95 | 111 | 125 | 142 | 157 | 173 | 173 | 173 |
| Height A (mm) | 116 | 137 | 152 | 156 | 181 | 210 | 231 | 239 | 267 |
| Thread Connection (O-Ring) | G1/2 | G3/4 | |||||||
| Max Flow Rate (L/min) | 38 | 95 | 150 | ||||||
| W (mm) | 17 | 21 | |||||||
| SW (mm) | 36 | 46 | |||||||
