NX Accumulator Fixing Clamp

NX Accumulator fixing clamp

Ningbo Chaori Hydraulic Co .,Ltd. is located in National AAAAA scenic resort Xikou town,Fenghua, Ningbo.The company covers an area of 18000 square meters, and has been equipped with perfect manufacturing machines and detecting instruments. lt passed the lSO9001-2000 certification in 2000,and had the important certificates and licenses, including the Special Equipment Designing and Manufacture License issued by General Administration of Quality Supervision ,Inspection and Quarantine, of China，ASME manufacture certificate of pressure vessel ,and EU CE certificate. The company took part in the establishment of accumulator type national standard.

Product Details

The accumulator fixing clamp is a professional device specially designed for fixing the accumulator. It has the characteristics of compact structure, flexible connection and beautiful appearance. The company's products are divided into two types: NX and NXJ.

1. Product description

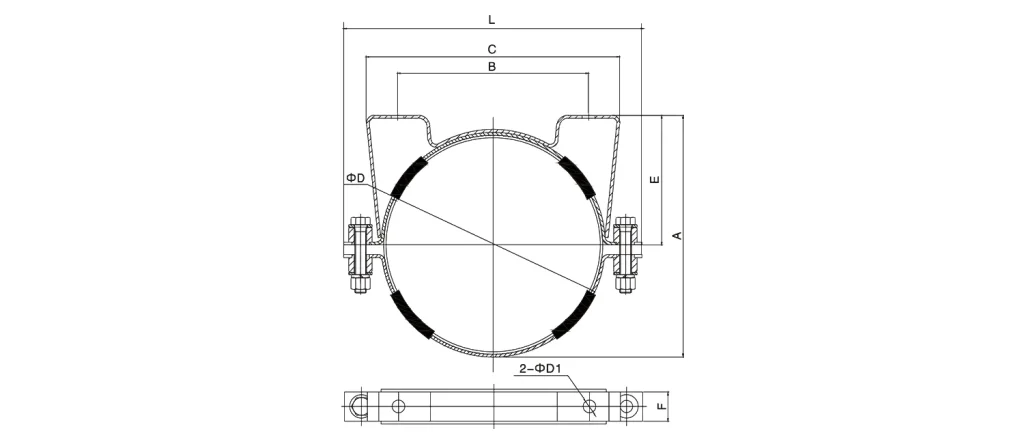

2. Structure and size specifications

model	A	B	C	ΦD	ΦD1	E	F	L	Equipped with accumulator model	Weight (Kg)
NX-KG/Φ89	112	76	110	Φ89	Φ9	62.5	20	150	NXQ-0.4L~0.63L	0.3
NX-KG/Φ114	137	100	138	Φ114	Φ9	75	20	176	NXQ-1L	0.4
NX-KG/Φ152	177	126	186	Φ152	Φ11	96	20	212	NXQ-1.6L~6.3L	0.5
NX-KG/Φ219	248	196	260	Φ219	Φ13	133	30	306	NXQ-10L~40L	1.1
NX-KG/Φ299	328	276	350	Φ299	Φ13	173	30	385	NXQ-20L~100L	1.5
NX-KG/Φ351	396	330	405	Φ351	Φ15	212	40	442	NXQ-63L~160L
NX-KG/Φ426	456	403	478	Φ426	Φ15	237	40	518	NXQ-100L~250L

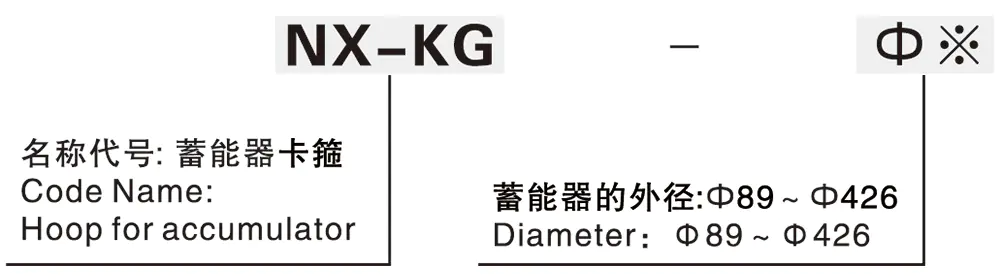

3. Ordering instructions

① The full name of the model code must be stated when ordering, such as: the accumulator has a nominal volume of 25L and a diameter of 0299. Clamp: NX-KG/Φ299. (Include rubber pad)

② If there are special requirements for the clamp, please consult with our company.

③ The company reserves the right to change the design without prior notice.
